DMN (Deprecated)

DMN evaluation is deprecated and will be removed soon.

What Changes for You

In Flower, DMN decision tables made decisions for BPMN gateways and updated Jira fields on the fly. Replace both uses:

The rest of this page is a reference for existing models until DMN is removed.

Migrate from DMN to Gateway Conditions

Take a decision table that routes a process by the priority of a work item. Its hit policy is FIRST:

Replace it with an exclusive gateway that has three outgoing transitions:

Follow these steps:

1. Open the BPMN model and find every gateway that gets its decision from a DMN rule.
2. Write one condition for each rule that leads to a path, in the order of the table.
3. Mark the path of the rule without an input (-) as the default flow.
4. Test the model with real work items, see Troubleshooting Expressions.

Fields look different. In DMN, fields are directly below the work item, for example pi.priority.name. In gateway conditions, they are below fields, for example pi.fields.priority.name. Use cur for the work item of the last activity before the gateway.

From FEEL to Expressions

What Is DMN?

DMN (Decision Model and Notation™) is a standard of the Object Management Group (OMG)  that businesses use in many industries to design decision models and automate decisions. It is a common language that aligns business and IT on repeatable business rules and decision management, and it makes decision models interchangeable across the organization. See the DMN specification .

The core elements of DMN are:

• Decision tables: A simple and intuitive representation of decisions with inputs, conditions, and outputs.
• Friendly Enough Expression Language (FEEL): The language that expresses the conditions in decision tables so that they can be executed.
• Decision Requirements Diagrams (DRD): Used when a decision cannot be described in one table, for example when intermediate decisions are inputs of the final decision.

Get Started

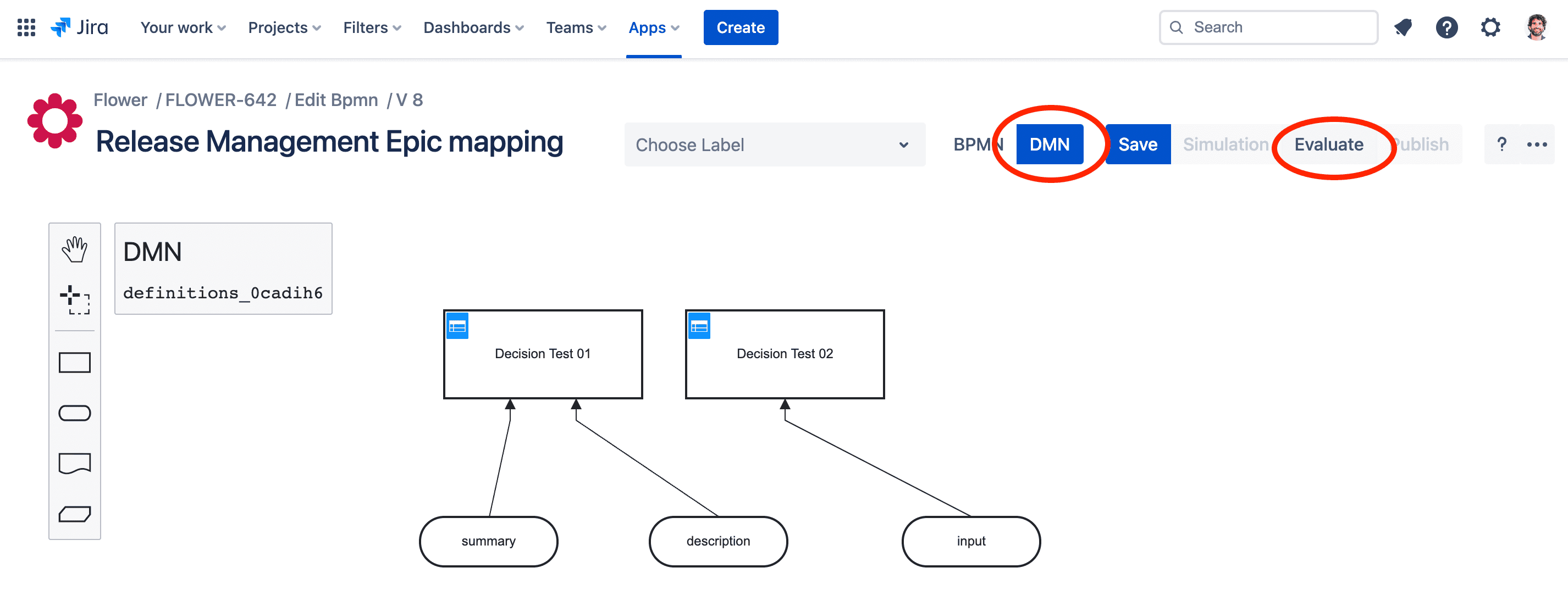

The DMN editor is part of the Flower BPMN modeler, so you can switch between BPMN and DMN at any time. When you have created a DMN model, you can evaluate it together with the current BPMN model and example Jira work items. See Evaluate DMN in Flower.

Note: In contrast to the BPMN model, the DMN model is not versioned. The draft is also the published version.

How Flower Interprets the DMN Result

Flower uses the DMN result to make decisions in your BPMN model and to update the Jira work items that belong to your process instance.

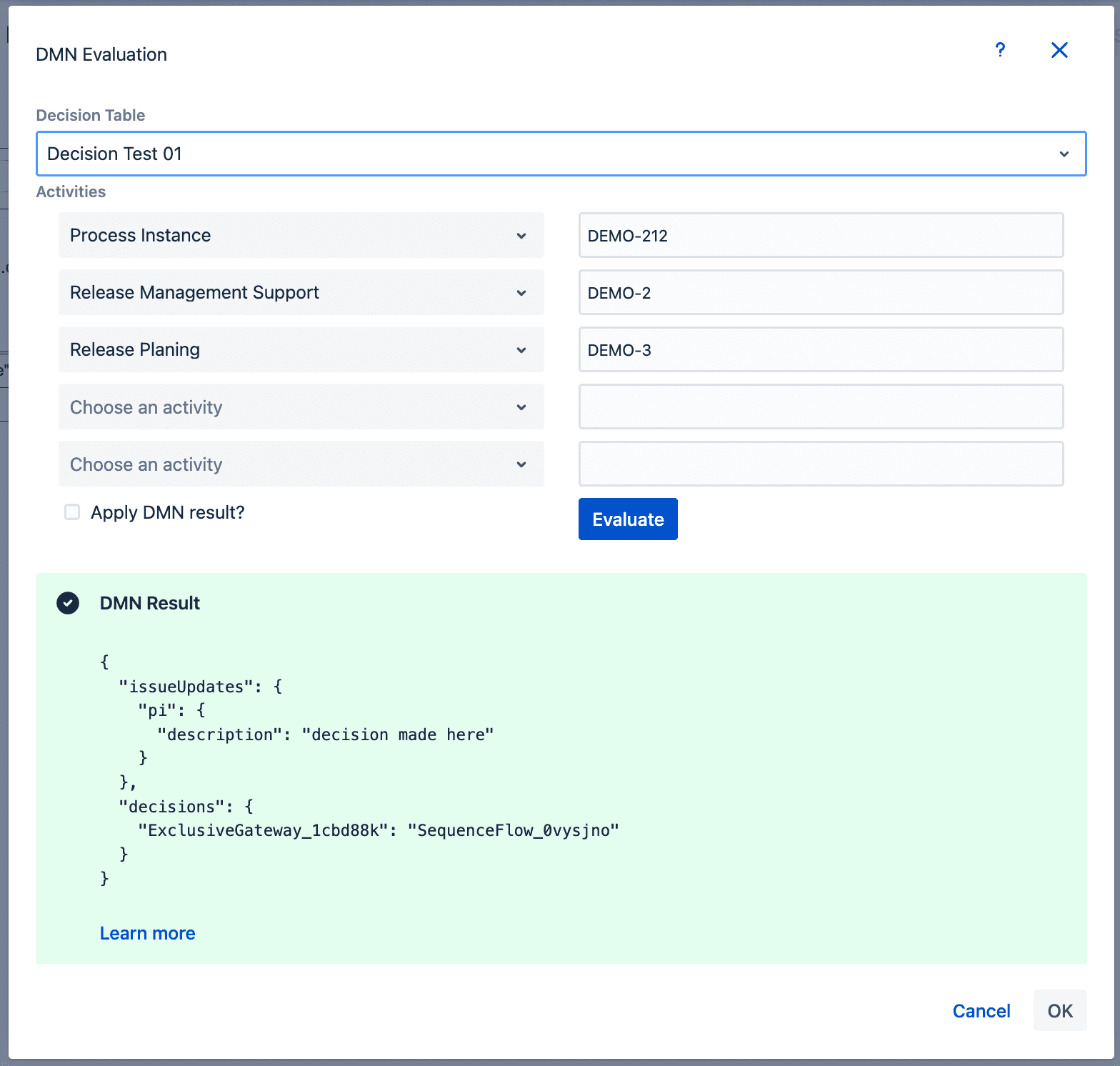

To test decision tables, the Flower DMN modeler can evaluate them together with the BPMN model and Jira. For this, you map BPMN activities and the process instance to existing Jira work item keys.

If you select Apply DMN result, Flower applies the result directly: it saves the decision on the process instance and writes the field updates to the Jira work item that you mapped for the test.

Flower interprets a DMN evaluation result in this general JSON form (shortened notation):

{
    decisions:{
        gatewayId:[transitionId],
        gatewayId:transitionId
    },
    issueUpdates:{
        nodeId:{fieldId:value},
        nodeId:{description:'Lorem ipsum'}
    }
}

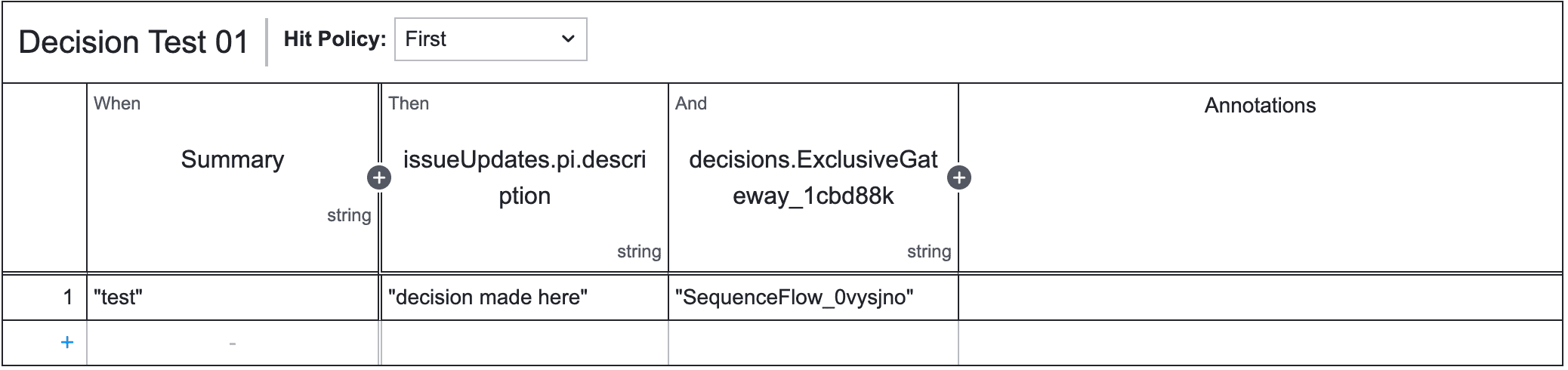

The following example decides based on the summary of the process instance:

It produces this JSON. Take the node IDs and gateway IDs from your BPMN diagram.

{
  "issueUpdates": {
    "pi": {
      "description": "decision made here"
    }
  },
  "decisions": {
    "ExclusiveGateway_1cbd88k": "SequenceFlow_0vysjno"
  }
}

Address Jira Fields

Debugging

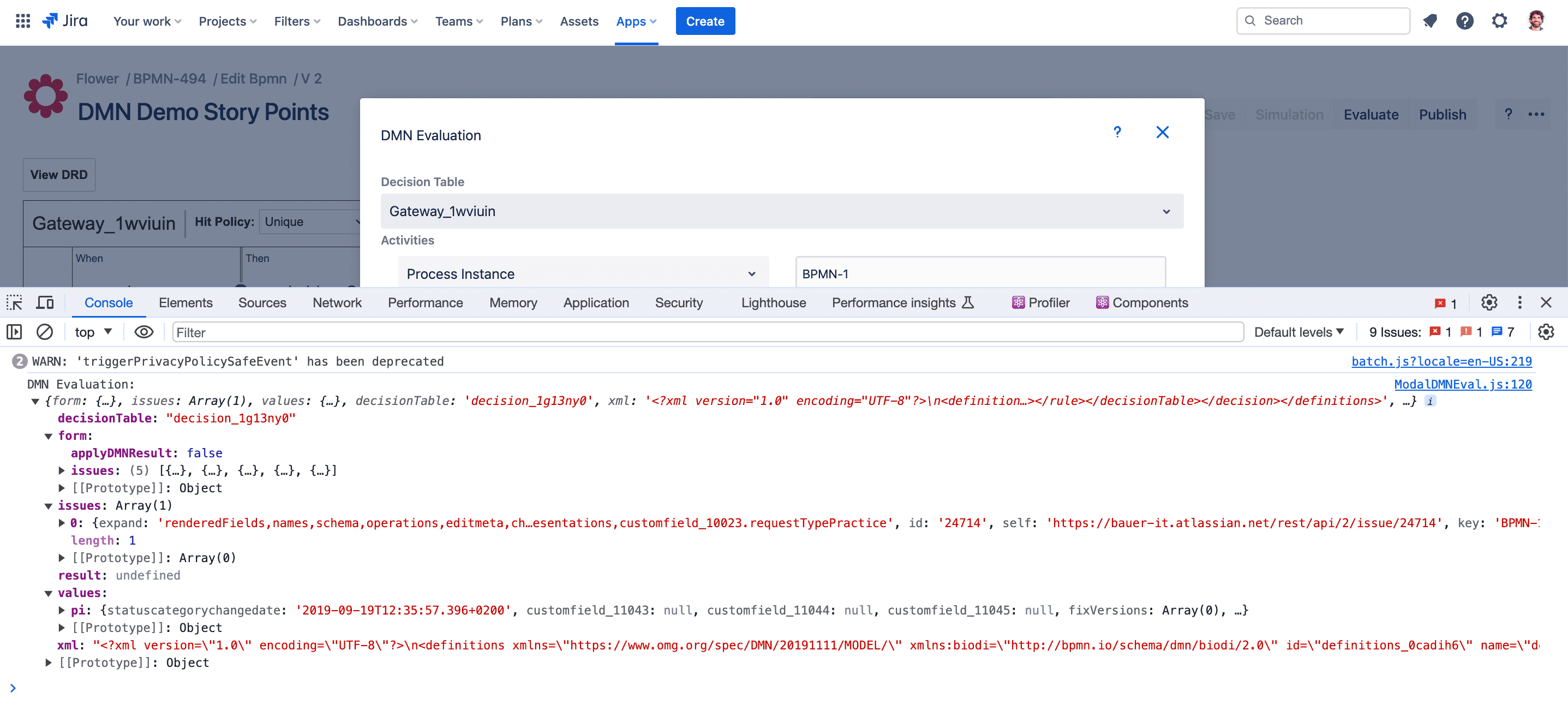

It can be hard to formulate a DMN expression and to address a Jira field correctly. Flower therefore logs further details to the developer console of your browser.

Introducing FEEL

FEEL gives many kinds of expressions in a decision model a standard, executable meaning. It is part of the DMN standard  of the OMG. FEEL defines a syntax for conditions that input data is evaluated against. For example, you can describe that input data must be:

• a concrete string, like the season “summer”
• true or false, like the fact that our guests are vegetarians
• a number that is below, above, or exactly the same as another number
• a number between a minimum and a maximum
• a date before, after, or the same as another date
• and much more

Sample FEEL Expressions

This is not a complete list. See the DMN specification  for the full FEEL grammar.

Evaluate DMN in Flower

The result of evaluating a decision table depends on the hit policy:

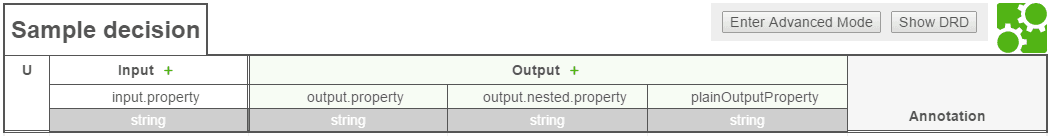

The object of a matching rule contains the evaluated output values. The output names define its structure, and qualified names with a dot (.) lead to nested objects. See the following example:

An object for a matching rule of the table above looks like this:

{
  plainOutputProperty: '...',
  output: {
    property: '...',
    nested: {
       property: '...',
    },
  }
}

Supported Content in Decision Tables

Input expressions are commonly (qualified) names, for example customerAge or customer.age. You can also use any expression according to S-FEEL, and even function invocations, for example employee.salary * 12 or convertToUSD(employee.salary).

Built-in functions. Flower supports these built-in functions from DMN:

• String functions: starts with, ends with, contains, upper case, lower case
• Boolean functions: not
• List functions: list contains, count, min, max, sum, mean, and, or, append, concatenate, insert before, remove, reverse, index of, union, distinct values, flatten

Input entries. Flower supports simple unary tests according to the DMN specification, with these additions:

• An endpoint can also be an arithmetic expression.
• A simple value can also be a function invocation.
• A simple literal can also be a null literal.
• A date and time literal can also be written as “date and time”.
• Brackets in arithmetic expressions are supported.
• Additional name symbols are not supported.

Examples (not a complete list):

Most combinations of these syntax elements are valid as well. For example, this is a valid input entry, although it probably makes no sense:

not(f(a + 1), [ date(b) + duration(c.d) .. g(d) ])

Input Variables as Parameters of Functions

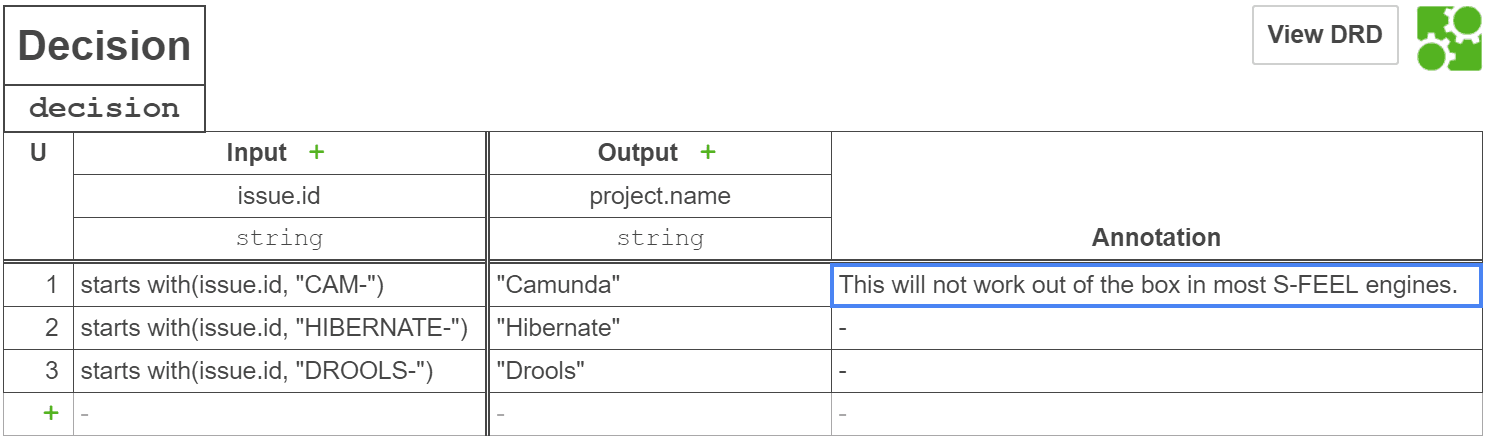

Sometimes you want to use the value of an input expression as a parameter of a function in an input entry, for example to test whether a string contains a substring, where each substring forms a different rule. You can use this to derive the space of a work item from the prefix of its key:

The function starts with(string, substring) tests whether a string starts with a prefix. With S-FEEL, however, you cannot use the value of an input expression as a parameter of the function. If the input expression is issueId and the input entry is starts with(issueId, "CAM"), the input entry evaluates to true for CAM-42. A rule with this input entry still does not match, because true does not equal the value of the input expression, which is CAM-42.

Flower DMN therefore follows a pragmatic convention: if an input expression is a qualified name and an input entry contains a function that takes the same qualified name as one of its parameters, and the function evaluates to true, the rule matches with respect to this input entry. (It may still not match because of other input entries.) The decision table above can therefore derive the space from the key prefix.

Output Entries

Flower supports a simple expression according to the DMN specification as output entry, with the same additions as for input entries. Output entries are expressions, not comparisons, so these values are not allowed:

• < 1
• [1 .. 2]
• not("A")
• Empty values, including the dash -

Undefined Values

Input expressions, input entries, and output entries may reference functions and properties that are undefined or missing from the input context. Flower handles this as follows.

Evaluation. An input expression, input entry, or output entry evaluates to undefined if it contains a function or property that is not found in the input context or has an undefined value. You cannot compare undefined values or check them for equality: for undefined values a and b, the expression a = b evaluates to undefined, not to true. The built-in function defined is the exception. It returns true if the argument is neither null nor undefined, and false otherwise.

Matching of rules.

• If an input expression evaluates to undefined, every rule whose input entry is not empty (neither the empty string nor the dash -) does not match, whatever the input entry evaluates to.
• If an input entry evaluates to undefined, its rule does not match, whatever the input expression evaluates to.

Decision result. If an output entry of a matching rule evaluates to undefined, the variable of the output name is set to undefined for the hit policies UNIQUE and FIRST. For COLLECT and RULE ORDER, the undefined value is not added to the result list.

Custom functions. If you cannot rule out undefined values, your custom functions should check their arguments and return undefined if one or more arguments are undefined.

Pass Dates as Input

For input expressions, input entries, or output entries of the type date(property) or date and time(property), you can create the value of property in these ways:

// For dates only: a date string in the format YYYY-MM-DD
const context = {
  property: '2018-03-01',
}

// For date and time: an ISO 8601 date and time string
const context = {
  property: '2018-03-01T14:30:00+01:00',
}

// JavaScript date a): from numerical year, month, and so on
// (this is implicitly in the local time zone)
const context = {
  property: new Date(2018, 2, 1, 0, 0, 0),
}

// JavaScript date b): from a string with an explicit time zone
const context = {
  property: new Date('2018-03-01T00:00:00+01:00'),
}

// moment-js value
const context = {
  property: moment.parseZone('2018-03-01T00:00:00+01:00'),
}

Any JavaScript Date or moment-js value is syntactically fine, however you created it.
